Description
The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.
The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility.
Stream using your favorite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 , and Google Cast for the ultimate ease of streaming your music.

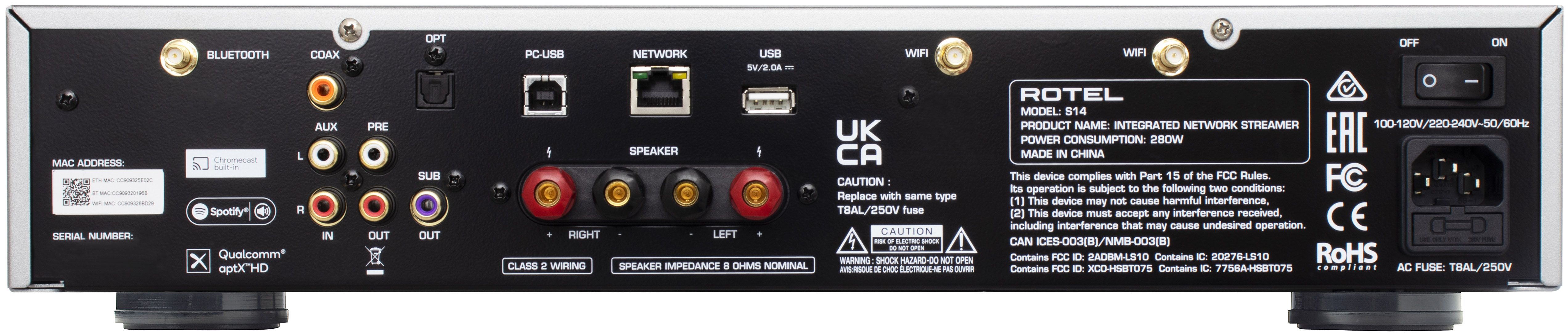

The S14 also includes Coaxial, Optical, Analog, PC-USB and aptXTM HD Bluetooth source inputs for legacy devices and even plays MP3, WMA and AAC files from flash drives.
This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with Rotel.
Dimensions (W × H × D)
430 × 93 × 345mm
17″ × 3 5/8″ × 13 1/2″
FRONT PANEL HEIGHT
80mm (3.15″)
Power Requirements
120V, 60Hz
Power Consumption
280W
Standby Power Consumption
<0.5W
Net Weight
9.15kg (20.17lbs.)
BTU RATING (4Ω, 1/8th power)
733 BTU/h
Maximum Power Output
150W/Ch (4Ω)
Continuous Power Output
80W/Ch (8Ω)
Total Harmonic Distortion
(THD)
<0.04%
Frequency Response
Line Level Inputs:
10Hz – 100kHz, ±0.5dB
Digital Inputs:
10Hz – 90kHz, ±2.0dB, Max
S/N Ratio (IHF “A” Weighted)
Line Level Inputs: 100dB
Digital Inputs: 98dB
Intermodulation Distortion
(60Hz:7kHz, 4:1)
<0.03%
Damping Factor
400
Input Sensitivity
Line Level Inputs: 200mV
Digital Inputs: -20dBfs
Input Impedance
Line Level Inputs: 47kΩ
Digital Inputs: 75Ω
Input Overload
Line Level Inputs: 4.5V
Tone Controls
±10dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
