Description
RCD-1572MKII
The RCD-1572MKII follows Rotel’s proud tradition of delivering award winning CD players since 1989 supporting the over 200 billion CDs sold in the market with authentic, genuine detail delivering an exceptional sense of space and depth.

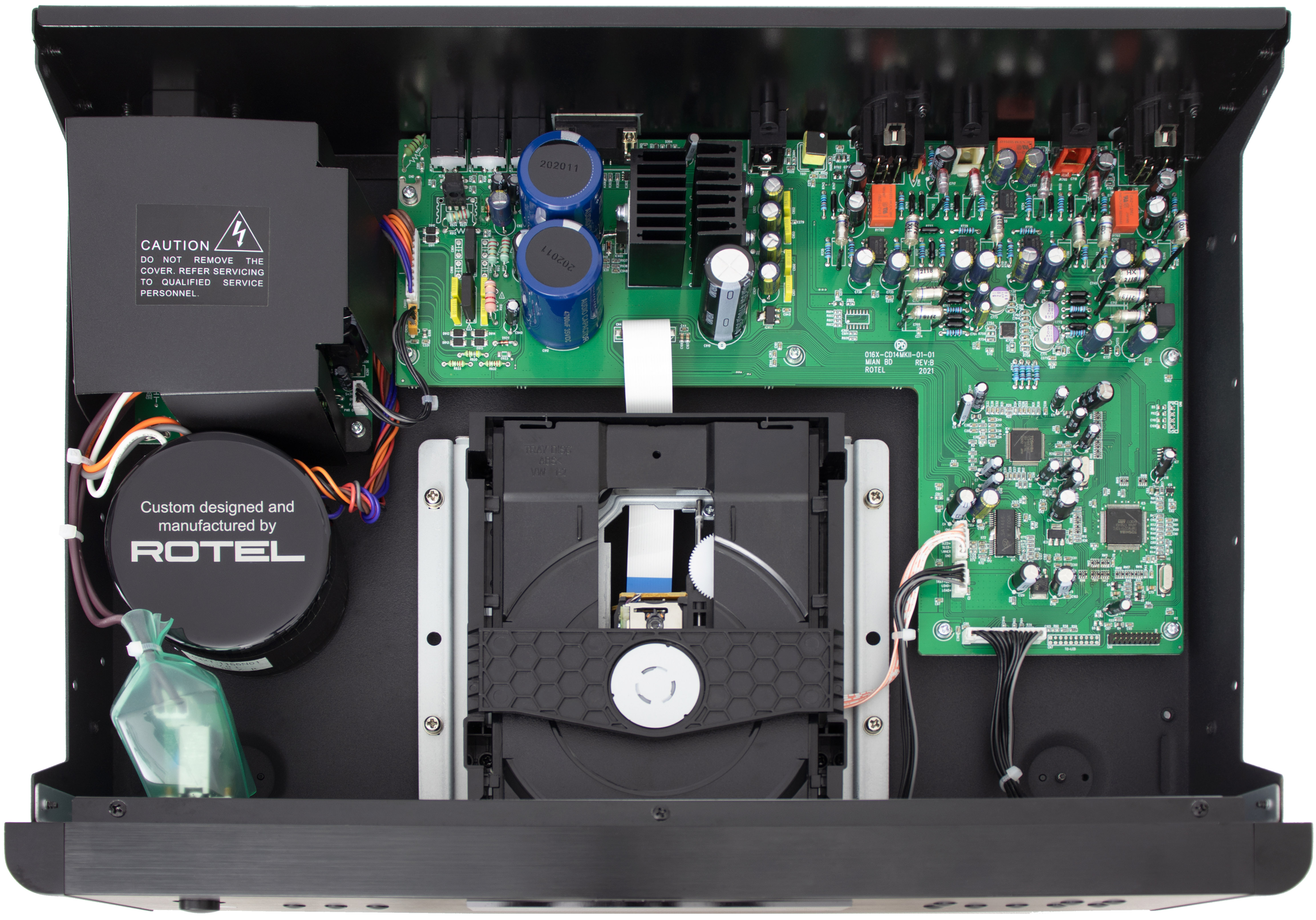

Utilizing an ultra-low noise in-house manufactured toroidal transformer the RCD-1572MKII’s circuits are electrically and physically isolated removing unwanted distortion and lowering the noise floor.
A premium Texas Instruments 32-bit DAC delivers exceptional frequency response to fully balanced differential XLR Balanced, RCA and coaxial digital outputs.
The RCD-1572MKII is both classic and refined ready for your music collection including MP3s delivering stunning detail and extraordinary clarity.
Dimensions (W × H × D)
431 × 104 × 320mm
17″ × 4″ × 12.6″
Front Panel Height
2U / 88.1mm (3.5″)
Power Requirements
120V, 60Hz
Power Consumption
15W
Standby Power Consumption
<0.5W
Net Weight
7.34kg (16.18lbs.)
Total Harmonic Distortion (THD)
0.0035% @ 1kHz
Frequency Response
20Hz – 20kHz, 0 ±0.5dB
S/N Ratio (IHF “A” Weighted)
>118dB
Dynamic Range
>99dB
Digital to Analog Converters
Texas Instruments
Channel Balance
± 0.5dB
Channel Separation
>118dB @ 10kHz
Analog Output Level
Unbalanced (RCA): 2.2V
Balanced (XLR): 4.5V
Digital Output
0.5V, Peak to Peak
Analog Output Impedance
Unbalanced (RCA): 100Ω
Balanced (XLR): 200Ω
Load Impedance
75Ω
