ROTEL A12MKII Stereo Integrated Amplifier (Black)

Description

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.

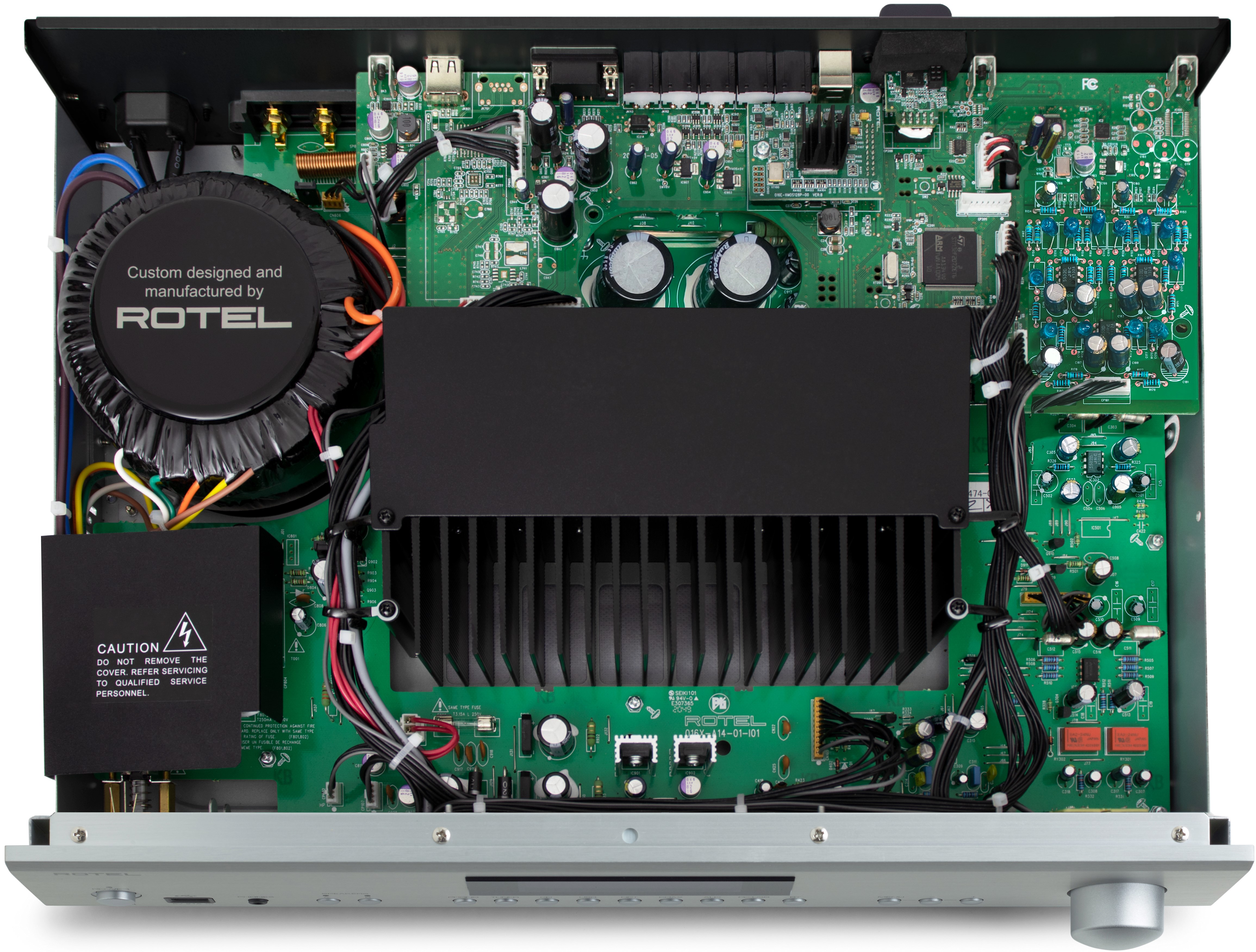

Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

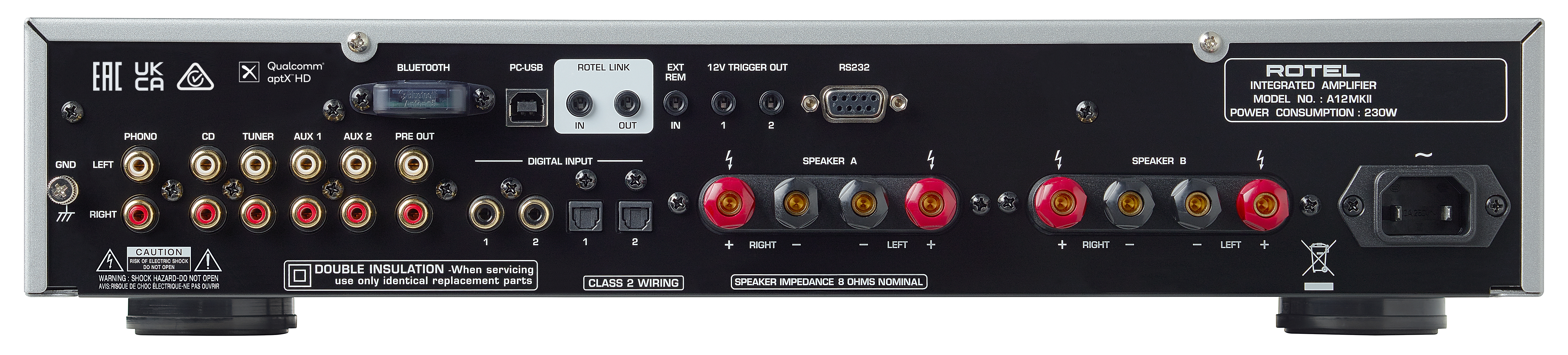

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptX^TM Bluetooth input ensures connection to your favorite sources.

The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.

Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Dimensions (W × H × D)

430 × 93 × 345mm
17″ × 3.6″ × 13.5″

Front Panel Height

80mm (3.15″)

Power Requirements

120V, 60Hz

Power Consumption

230W

Standby Power Consumption

<0.5W

Net Weight

8.76kg (19.31lbs.)

BTU Rating (4Ω, 1/8th power)

632 BTU/h

Maximum Power Output

120W/Ch (4Ω)

Continuous Power Output

60W/Ch (8Ω)

Total Harmonic Distortion (THD)

<0.018%

Frequency Response

Line Level Inputs: 10Hz – 100kHz, 0±0.5dB

Digital Inputs: 10Hz – 90kHz, 0±2dB

Phono Input: 20Hz – 20kHz, 0±0.5dB

S/N Ratio (IHF “A” Weighted)

Line Level Inputs: 100dB

Digital Inputs: 103dB

Phono Input: 90dB

Intermodulation Distortion (60Hz:7kHz, 4:1)

<0.03%

Damping Factor

220

Input Sensitivity

Line Level Inputs: 230mV

Digital Inputs: 0dBfs

Phono Input (MM): 3.4mV

Input Impedance

Line Level Inputs: 24kΩ

Digital Inputs: 75Ω

Phono Input (MM): 47kΩ

Input Overload

Line Level Inputs: 4V

Phono Input: 50mV

Preout Level

1.2V

Output Impedance

470Ω

Tone Controls

±10dB at 100Hz / 10kHz

Digital Input

SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24-bit/96kHz)

USB Audio Class 2 (up to 32-bit/384kHz)*

*Driver installation required

Roon Tested
