Description
Ultimate performance CD Player

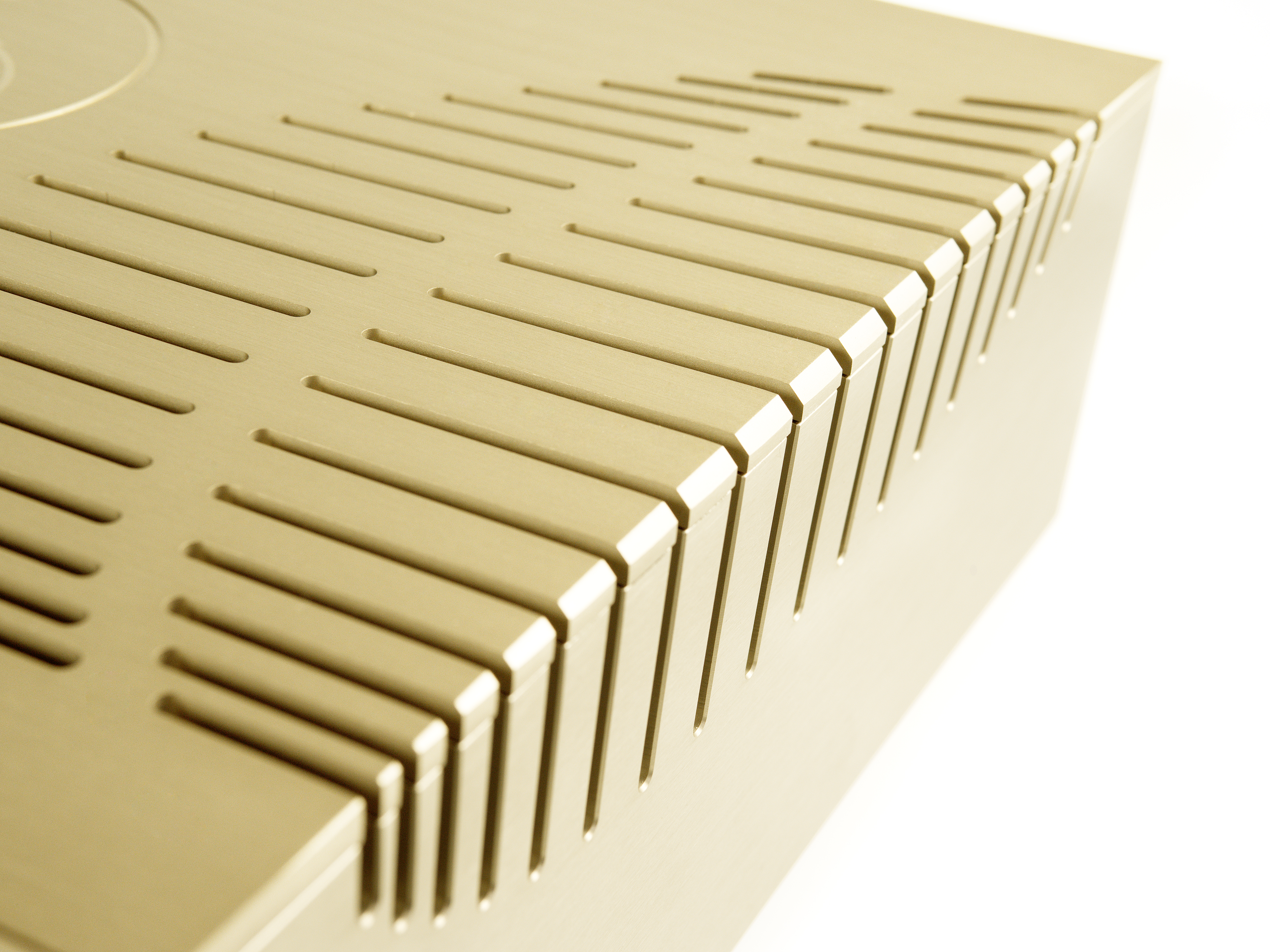

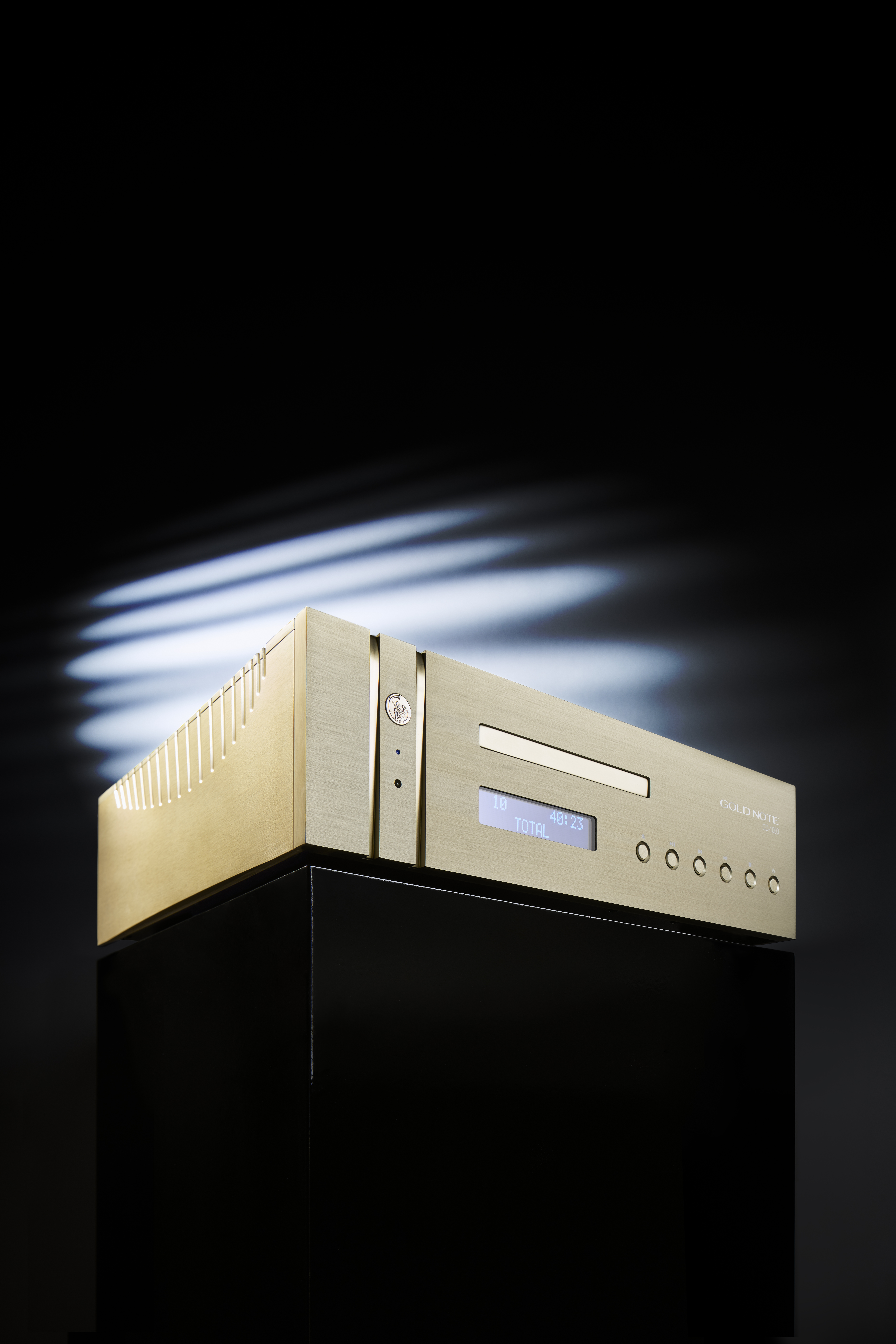

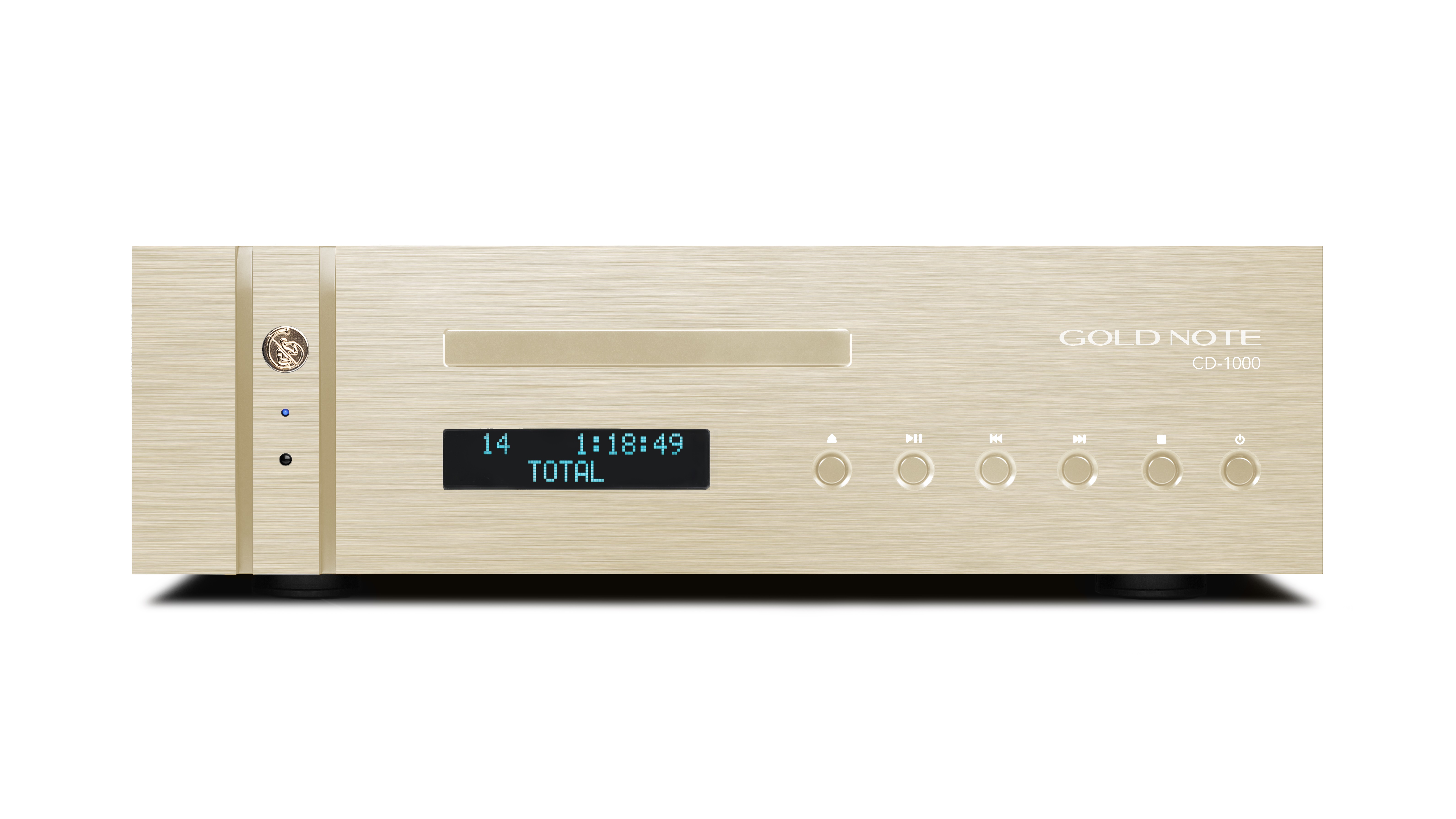

The CD-1000 MkII, housed in a beautiful brushed aluminum chassis, integrates a digital and an analogue stage into a single, elegant device. It is designed to listen to music from a CD as well as to play audio files from a TV or DVD player connected via optical or coaxial input. The CD-1000 MkII delivers a natural, detailed and powerful sound, and can be easily integrated into any Hi-End stereo system. CD-1000 MkII is equipped with a top-of-the-range 24bit/192kHz digital converter and digital inputs such as the S/PDIF coaxial and the TOS optical to get the best out of your system. The aluminum JPL-2800 transport mechanism made in Austria by Stream Unlimited is one of the best in the world and ensures maximum stability avoiding fluctuations or loss of definition. The CD-1000 MkII integrates our Zero-Clock technology which allows for an effective reduction of jitter, and features a digital volume control that can be used to drive directly a power amplifier or active speakers.
The CD-1000 MkII is available in two models: CD-1000 MkII equipped with the integrated DAC BurrBrown PCM1796 D/A converter chip; and optional CD-1000 MkII DELUXE DSD which additionally features a USB-B port (supporting up to DSD256 and PCM 32bit/384kHz).
The CD-1000 MkII can be paired with external units that allow further improvement of its exceptional audio performance:
– TUBE-1012 and TUBE-1006 – class A valve output stages developed with 6 or 12 valves
– PSU-1250 and PSU-1000 – super inductive external power supply dedicated to the Gold Note series 1000.
MAIN FEATURES
CD-PLAYER CD transport with integrated D/A converter
DAC STANDARD model: 24bit/192kHz DAC PCM1796DELUXE model: 24bit/192kHz DAC PCM1792A
FREQUENCY RESPONSE 20Hz-20kHz @ +/-0.3dB
THD – TOTAL HARMONIC DISTORTION 0.001% max
SIGNAL TO NOISE RATIO 128dB
DYNAMIC RESPONSE 127dB
VOLUME CONTROL Switchable On/Off digital partializer
MECHANIC Aluminum JPL-2800 Stream-Unlimited
SPEED FLUCTUATION 0.0001%
CD FORMATS Red Book
DISC COMPATIBILITY CD, CD-R, CD-RW
REMOTE CONTROL Multifunctional remote included

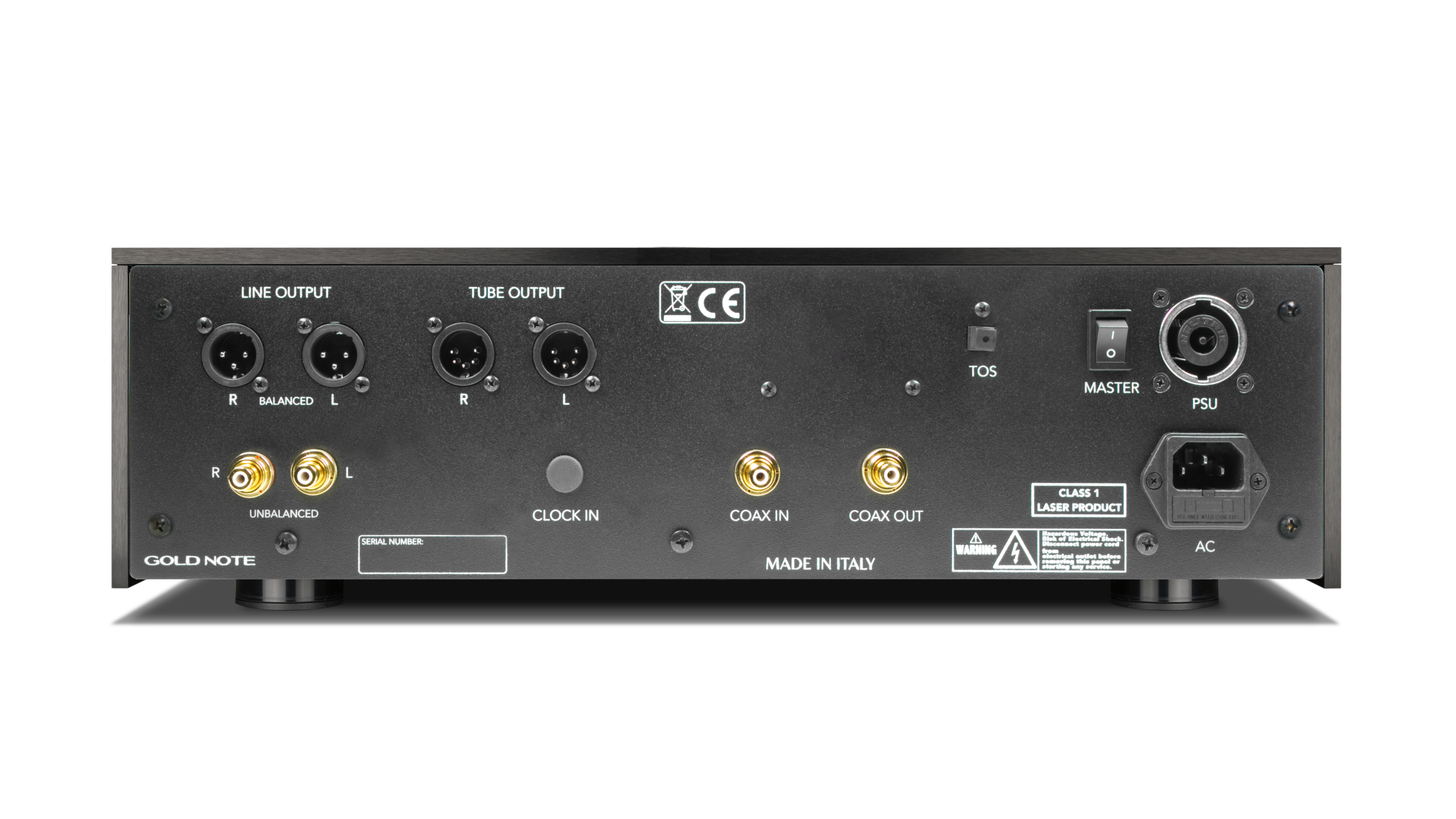

INPUTS AND OUTPUTS
DIGITAL INPUTS 1x RCA S/PDIF coaxial1x TOS 24bit/192kHz1x USB-B DSD256 and 32bit/384kHz (CD-1000 MKII DSD model only)
ANALOGUE OUTPUTS 1x unbalanced RCA1x balanced XLR1x TUBE-1012
DIGITAL OUTPUTS 1x S/PDIF Coax 75Ω
OUTPUT IMPEDANCE 50Ω
LINE OUTPUT LEVEL RCA 2VrmsXLR 2Vrms
POWER
POWER CONSUMPTION 30W
POWER SUPPLY 100-120V
FUSE (100/120V) 2A F/T
DIMENSIONS AND WEIGHT
DIMENSIONS 430mm W | 135mm H | 375mm D
WEIGHT Kg. 12 – netKg. 16 – boxed
REMOTE CONTROL
REMOTE CONTROL Multifunctional remote control included
